Summit To Sea Grand Dive Pro Plus | Wheelchair Accessible Hyperbaric Chamber
The Largest Mild Hyperbaric Chamber on the Market — Wheelchair & Gurney Accessible

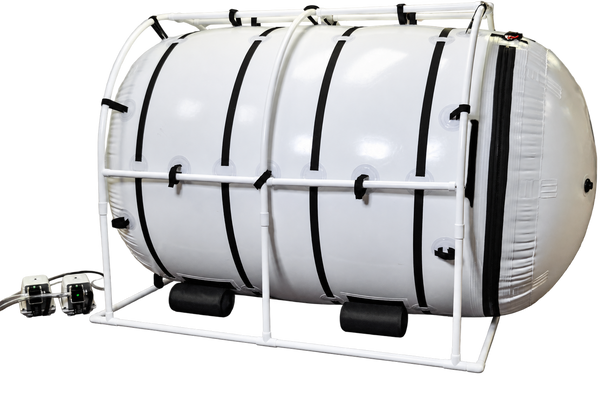

Protected by Patent #US 11,452,654 B2. The Summit To Sea Grand Dive Pro Plus is one of the largest mild hyperbaric chambers available, measuring 60" (5 feet) in diameter. Available in two lengths — 6.5' and 8.5' — it is uniquely designed with a large, spacious entrance wide enough to roll a wheelchair directly inside with plenty of room. Light, bright, and roomy, it comfortably fits multiple people or provides ample space to exercise inside the chamber. If wheelchair roll-in access is not needed, see the Grand Dive Pro with Platform.
Our original Grand Dive Pro Plus 60" has impressed many customers with its spacious design, but we understand that space constraints can be a challenge in some clinics or residences. Summit to Sea is offering a shorter 6.5' chamber with all the same benefits as the 8.5' chamber.
Questions before you order?
Chamber Specifications
| Specification | Details |
|---|---|
| Diameter | 60" (5 feet) |
| Length | 78" (6.5 feet) or 102" (8.5 feet) |
| Operating Pressure | 1.3 ATA (4.4 PSI) |
| Compressors | Four redundant high-efficiency electric compressors with patented sound suppression and in-line air filtration |
| Power | 120V 15 AMP standard outlet |
| Zipper Design | Double-sided circumferential zippers (operable from inside or outside) |
| Safety Valves | Four air relief valves for safely achieving maximum 4.4 PSI |
| Auxiliary Valves | Two auxiliary valves |
| Viewing Windows | Two large viewing windows |
| Frame | External furniture-grade PVC frame included |
| Carrying Case | Included |
| Weight | Approximately 50 lbs |
| Wheelchair Access | Yes — roll-in compatible |
| Gurney Access | 8.5' chamber only |
| Platform | Available as optional add-on |
| Warranty | 2-year standard |
| Shipping | Free (contact us for concentrator package pricing) |
| Lead Time | Typically 2–3 weeks; call to confirm current timing |
Top Features
Wheelchair Access
Roll a wheelchair into this opening with plenty of room. If the person in the wheelchair is not able to sit up straight, they have the ability to be slightly reclined. This also allows plenty of room to have a second person inside the chamber with them.
Healthcare Provider
This chamber gives room for healthcare providers to actually treat their customers inside the chamber, enhancing their treatment.
Gurney Access (8.5' chamber only)
Another benefit of this chamber is it allows for a gurney (not included) to be rolled into the chamber if the patient is not able to sit in a wheelchair.
Comfortable Recliner
For other applications, this chamber allows you to put a comfortable reclining office chair inside as the feet can be raised up and the back reclined.
Mat to Recline
It comes with the usual foam mat that allows anyone to lay down and rest during their treatment.
Optional Add-Ons
Chamber Silencer, 4-Hole (Pro Plus)
$875
Chamber Cooler
$950
Platform
Contact us for pricing
Extended Warranty
Contact us for pricing
Oxygen concentrator
Contact us for package pricing
Chamber Silencer, 4-Hole (Pro Plus) — Add-On Detail
This patented silencer (US Patent #9,664,202 B2) is designed to be used exclusively with the Summit to Sea Grand Dive Pro Plus 6.5' and 8.5' chambers. An ideal solution for any hyperbaric application where a calm, quiet environment matters, it uses proven hyperbaric principles to absorb external noise generated by pumps — so the experience inside the chamber stays comfortably quiet. Small and compact, it is built with the same high-quality materials found in all Summit to Sea portable mild hyperbaric chambers.
Common uses include:
Chamber Cooler — Add-On Detail
This cooler, designed by Cool Hyperbarics, is unique to the hyperbaric cooling industry. It utilizes a heat exchange technology based on the zero-pressure differential principle, which prevents the reheating of cooled air as it enters the chamber. The present invention accomplishes this by arranging an air compressing unit, an air cooling unit, and an air discharging hose so that a flow of output warm air from the hyperbaric chamber can be recycled and converted into a flow of input cold air.
About Summit To Sea
Summit to Sea has been manufacturing Class II hyperbaric chambers for over 30 years. All Summit models feature redundant compressors, translucent material for a bright interior, patented sound suppression, and are examined by Institutional Review Boards for quality and safety.
Setup Notes from Bradshaw Oxygen
- Setup Your chamber arrives boxed and is assembled in the room where you'll use it. Assembly takes about 45 minutes to an hour, and goes quickest with two people.
- Before you order Send us a short video of the room. We'll confirm the chamber and its equipment will fit the space once it's built.
- Phones and laptops Yes, you can bring a cell phone or computer into the chamber. It's the question we hear most.
- Oxygen With an oxygen package, oxygen is delivered through a nasal cannula or mask.
- Local delivery Within about 100 miles of our Leicester, NC shop, we deliver, assemble, and show you how to use your chamber at no charge.
Why Buy From Bradshaw Oxygen?
Shop Pay Installments, Affirm, and PayPal financing options available for qualifying purchases. View financing options →
HSA/FSA eligible — contact us to confirm eligibility for your purchase.
A prescription is required when this chamber is purchased for private consumer use; clinics and professional facilities do not need one. Prescriptions can be emailed directly to us, or call or text 828-380-6287 for assistance. If you do not already have a prescription, we can connect you with a licensed telemedicine provider.
Manufacturer MSRP Pricing
This chamber is sold in accordance with the manufacturer’s established MSRP pricing requirements. Any discount, sale, promotion, or other below-MSRP pricing must be specifically authorized by the manufacturer. From time to time, the manufacturer may approve promotional pricing or a sale, and Bradshaw Oxygen may offer that authorized pricing during the approved promotional period.
Compare the Summit To Sea Grand Dive Pro Plus with Other Hyperbaric Chamber Options
Manual & Setup Resources
Browse our Manuals & Setup Videos library for user manuals, setup videos, and available support resources.
