Invacare HomeFill Oxygen Tank Filling System

Sale price $600.00 Regular price $900.00

This product will take an additional 1 - 2 weeks to ship.
Shipping calculated at checkout.

Invacare HomeFill Oxygen Tank Filling System (used) Compressor Only.


30 day Warranty

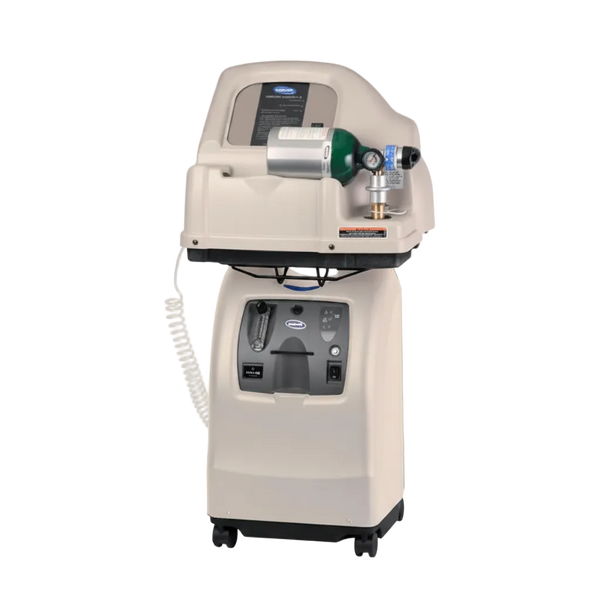

The Invacare HomeFill(TM) complete home oxygen system defines ambulatory oxygen by allowing patients to fill their own high-pressure cylinders from a concentrator. The HomeFill is a multi-stage pump that simply and safely compresses oxygen from any Invacare HomeFill compatible 5-liter or 10-liter concentrator into oxygen cylinders in sizes M2, ML4, ML6, M6, M9(C) and D.The ability to fill their own cylinders gives ambulatory patients greater independence and freedom. Home care oxygen providers will also benefit from the virtual elimination of time-consuming and costly service calls associated with cylinder and-or liquid oxygen deliveries.

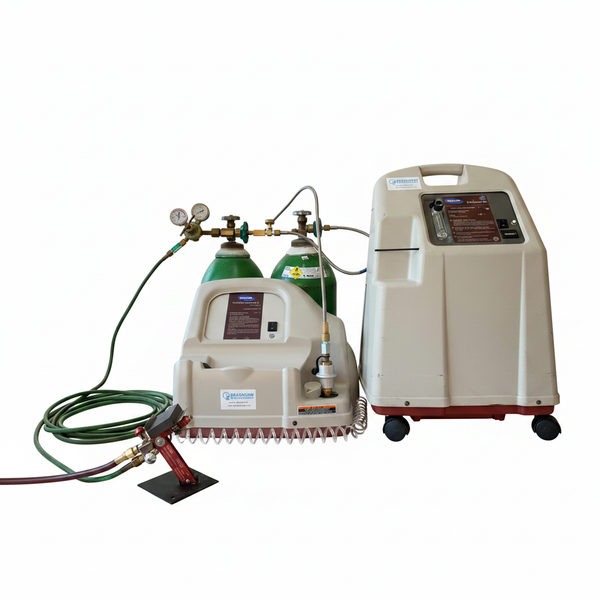

Homefill Setup Tutorial

No warranty

FEATUIRES
  • Connection and controls are designed for easy operation.
  • Patient can fill cylinders while receiving oxygen from the concentrator.
  • Gives ambulatory patients greater freedom and independenceVirtually eliminates the high service costs of frequent deliveries of cylinders and-or liquid oxygen.Small and lightweight.
SPECIFICATIONS
Power
Electrical: 120 VAC +- 10% at 60 Hz
Consumption: 200 watts
Rated Current Input: 2.0 amps
Pressure: 14 - 21 psi
Oxygen
Output from concentrator: 0 - 3 lpm (while filling cylinder) Input: 0 - 2 lpm
Dimensions: 20.25"W x 15"H x 16”D
Product Weight:

33 lb

Cylinder  Filling Times:

ML4: 55 min

ML6: 75 min

M6: 60 min

M9: 125 min

 D: 3.5 hrs
